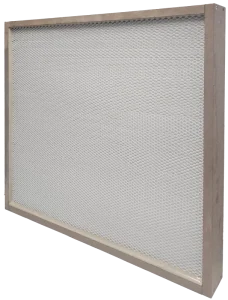

Panel MDF HEPA Filter

The Panel MDF HEPA Filter from APC’s Absolex Absolute series is designed for high-efficiency air filtration in cleanrooms, healthcare, laboratories and controlled HVAC environments. Featuring a lightweight MDF frame and high-performance HEPA media, it delivers reliable particle removal with cost-effective performance.

Key Features

≥99.97% efficiency at 0.3 µm (HEPA grade)
Rigid MDF frame construction
Lightweight and economical design
Low pressure drop
Suitable for terminal housing and HVAC systems

Filter Code	EN 1822	ISO 29463	Width	Height	Depth	Filtration Area	Pleat Height	Pressure Loss 0,45 m/s
PM-F-H13-305x305x66-GED-FGB-PH50	H13	ISO 35 H	305 mm	305 mm	66 mm	2,3 m²	50 mm	150 m³/h	@	100 Pa
PM-F-H13-305x610x66-GED-FGB-PH50	H13	ISO 35 H	305 mm	610 mm	66 mm	4,5 m²	50 mm	300 m³/h	@	100 Pa
PM-F-H13-457x457x66-GED-FGB-PH50	H13	ISO 35 H	457 mm	457 mm	66 mm	5,1 m²	50 mm	330 m³/h	@	100 Pa
PM-F-H13-457x610x66-GED-FGB-PH50	H13	ISO 35 H	457 mm	610 mm	66 mm	6,7 m²	50 mm	450 m³/h	@	100 Pa
PM-F-H13-535x535x66-GED-FGB-PH50	H13	ISO 35 H	535 mm	535 mm	66 mm	6,9 m²	50 mm	460 m³/h	@	100 Pa
PM-F-H13-575x575x66-GED-FGB-PH50	H13	ISO 35 H	575 mm	575 mm	66 mm	8,0 m²	50 mm	530 m³/h	@	100 Pa
PM-F-H13-610x610x66-GED-FGB-PH50	H13	ISO 35 H	610 mm	610 mm	66 mm	9,0 m²	50 mm	600 m³/h	@	100 Pa
PM-F-H13-610x762x66-GED-FGB-PH50	H13	ISO 35 H	610 mm	762 mm	66 mm	11,2 m²	50 mm	750 m³/h	@	100 Pa
PM-F-H13-610x915x66-GED-FGB-PH50	H13	ISO 35 H	610 mm	915 mm	66 mm	13,5 m²	50 mm	900 m³/h	@	100 Pa
PM-F-H13-762x762x66-GED-FGB-PH50	H13	ISO 35 H	762 mm	762 mm	66 mm	14,0 m²	50 mm	940 m³/h	@	100 Pa
PM-F-H13-915x915x66-GED-FGB-PH50	H13	ISO 35 H	915 mm	915 mm	66 mm	20,3 m²	50 mm	1.350 m³/h	@	100 Pa
PM-F-H13-610x1220x66-GED-FGB-PH50	H13	ISO 35 H	610 mm	1220 mm	66 mm	18,0 m²	50 mm	1.200 m³/h	@	100 Pa
PM-F-H14-305x305x66-GED-FGB-PH50	H14	ISO 45 H	305 mm	305 mm	66 mm	2,3 m²	50 mm	150 m³/h	@	125 Pa
PM-F-H14-305x610x66-GED-FGB-PH50	H14	ISO 45 H	305 mm	610 mm	66 mm	4,5 m²	50 mm	300 m³/h	@	125 Pa
PM-F-H14-457x457x66-GED-FGB-PH50	H14	ISO 45 H	457 mm	457 mm	66 mm	5,1 m²	50 mm	330 m³/h	@	125 Pa
PM-F-H14-457x610x66-GED-FGB-PH50	H14	ISO 45 H	457 mm	610 mm	66 mm	6,7 m²	50 mm	450 m³/h	@	125 Pa
PM-F-H14-535x535x66-GED-FGB-PH50	H14	ISO 45 H	535 mm	535 mm	66 mm	6,9 m²	50 mm	460 m³/h	@	125 Pa
PM-F-H14-575x575x66-GED-FGB-PH50	H14	ISO 45 H	575 mm	575 mm	66 mm	8,0 m²	50 mm	530 m³/h	@	125 Pa
PM-F-H14-610x610x66-GED-FGB-PH50	H14	ISO 45 H	610 mm	610 mm	66 mm	9,0 m²	50 mm	600 m³/h	@	125 Pa
PM-F-H14-610x762x66-GED-FGB-PH50	H14	ISO 45 H	610 mm	762 mm	66 mm	11,2 m²	50 mm	750 m³/h	@	125 Pa
PM-F-H14-610x915x66-GED-FGB-PH50	H14	ISO 45 H	610 mm	915 mm	66 mm	13,5 m²	50 mm	900 m³/h	@	125 Pa
PM-F-H14-762x762x66-GED-FGB-PH50	H14	ISO 45 H	762 mm	762 mm	66 mm	14,0 m²	50 mm	940 m³/h	@	125 Pa
PM-F-H14-915x915x66-GED-FGB-PH50	H14	ISO 45 H	915 mm	915 mm	66 mm	20,3 m²	50 mm	1.350 m³/h	@	125 Pa
PM-F-H14-610x1220x66-GED-FGB-PH50	H14	ISO 45 H	610 mm	1220 mm	66 mm	18,0 m²	50 mm	1.200 m³/h	@	125 Pa
PM-F-U15-305x305x66-GED-FGD-PH50	U15	ISO 55 U	305 mm	305 mm	66 mm	2,5 m²	50 mm	150 m³/h	@	140 Pa
PM-F-U15-305x610x66-GED-FGD-PH50	U15	ISO 55 U	305 mm	610 mm	66 mm	5,0 m²	50 mm	300 m³/h	@	140 Pa
PM-F-U15-457x457x66-GED-FGD-PH50	U15	ISO 55 U	457 mm	457 mm	66 mm	5,6 m²	50 mm	330 m³/h	@	140 Pa
PM-F-U15-610x610x66-GED-FGD-PH50	U15	ISO 55 U	610 mm	610 mm	66 mm	10,0 m²	50 mm	600 m³/h	@	140 Pa
PM-F-U15-610x762x66-GED-FGD-PH50	U15	ISO 55 U	610 mm	762 mm	66 mm	12,5 m²	50 mm	750 m³/h	@	140 Pa
PM-F-U15-610x915x66-GED-FGD-PH50	U15	ISO 55 U	610 mm	915 mm	66 mm	15,0 m²	50 mm	900 m³/h	@	140 Pa
PM-F-U15-610x1220x66-GED-FGD-PH50	U15	ISO 55 U	610 mm	1220 mm	66 mm	20,0 m²	50 mm	1.200 m³/h	@	140 Pa
PM-F-H13-305x305x69-GED-FGB-PH50	H13	ISO 35 H	305 mm	305 mm	69 mm	2,3 m²	50 mm	150 m³/h	@	100 Pa
PM-F-H13-305x610x69-GED-FGB-PH50	H13	ISO 35 H	305 mm	610 mm	69 mm	4,5 m²	50 mm	300 m³/h	@	100 Pa
PM-F-H13-457x457x69-GED-FGB-PH50	H13	ISO 35 H	457 mm	457 mm	69 mm	5,1 m²	50 mm	330 m³/h	@	100 Pa
PM-F-H13-457x610x69-GED-FGB-PH50	H13	ISO 35 H	457 mm	610 mm	69 mm	6,7 m²	50 mm	450 m³/h	@	100 Pa
PM-F-H13-535x535x69-GED-FGB-PH50	H13	ISO 35 H	535 mm	535 mm	69 mm	6,9 m²	50 mm	460 m³/h	@	100 Pa
PM-F-H13-575x575x69-GED-FGB-PH50	H13	ISO 35 H	575 mm	575 mm	69 mm	8,0 m²	50 mm	530 m³/h	@	100 Pa
PM-F-H13-610x610x69-GED-FGB-PH50	H13	ISO 35 H	610 mm	610 mm	69 mm	9,0 m²	50 mm	600 m³/h	@	100 Pa
PM-F-H13-610x762x69-GED-FGB-PH50	H13	ISO 35 H	610 mm	762 mm	69 mm	11,2 m²	50 mm	750 m³/h	@	100 Pa
PM-F-H13-610x915x69-GED-FGB-PH50	H13	ISO 35 H	610 mm	915 mm	69 mm	13,5 m²	50 mm	900 m³/h	@	100 Pa
PM-F-H13-762x762x69-GED-FGB-PH50	H13	ISO 35 H	762 mm	762 mm	69 mm	14,0 m²	50 mm	940 m³/h	@	100 Pa
PM-F-H13-915x915x69-GED-FGB-PH50	H13	ISO 35 H	915 mm	915 mm	69 mm	20,3 m²	50 mm	1.350 m³/h	@	100 Pa
PM-F-H13-610x1220x69-GED-FGB-PH50	H13	ISO 35 H	610 mm	1220 mm	69 mm	18,0 m²	50 mm	1.200 m³/h	@	100 Pa
PM-F-H14-305x305x69-GED-FGB-PH50	H14	ISO 45 H	305 mm	305 mm	69 mm	2,3 m²	50 mm	150 m³/h	@	125 Pa
PM-F-H14-305x610x69-GED-FGB-PH50	H14	ISO 45 H	305 mm	610 mm	69 mm	4,5 m²	50 mm	300 m³/h	@	125 Pa
PM-F-H14-457x457x69-GED-FGB-PH50	H14	ISO 45 H	457 mm	457 mm	69 mm	5,1 m²	50 mm	330 m³/h	@	125 Pa
PM-F-H14-457x610x69-GED-FGB-PH50	H14	ISO 45 H	457 mm	610 mm	69 mm	6,7 m²	50 mm	450 m³/h	@	125 Pa
PM-F-H14-535x535x69-GED-FGB-PH50	H14	ISO 45 H	535 mm	535 mm	69 mm	6,9 m²	50 mm	460 m³/h	@	125 Pa
PM-F-H14-575x575x69-GED-FGB-PH50	H14	ISO 45 H	575 mm	575 mm	69 mm	8,0 m²	50 mm	530 m³/h	@	125 Pa
PM-F-H14-610x610x69-GED-FGB-PH50	H14	ISO 45 H	610 mm	610 mm	69 mm	9,0 m²	50 mm	600 m³/h	@	125 Pa
PM-F-H14-610x762x69-GED-FGB-PH50	H14	ISO 45 H	610 mm	762 mm	69 mm	11,2 m²	50 mm	750 m³/h	@	125 Pa
PM-F-H14-610x915x69-GED-FGB-PH50	H14	ISO 45 H	610 mm	915 mm	69 mm	13,5 m²	50 mm	900 m³/h	@	125 Pa
PM-F-H14-762x762x69-GED-FGB-PH50	H14	ISO 45 H	762 mm	762 mm	69 mm	14,0 m²	50 mm	940 m³/h	@	125 Pa
PM-F-H14-915x915x69-GED-FGB-PH50	H14	ISO 45 H	915 mm	915 mm	69 mm	20,3 m²	50 mm	1.350 m³/h	@	125 Pa
PM-F-H14-610x1220x69-GED-FGB-PH50	H14	ISO 45 H	610 mm	1220 mm	69 mm	18,0 m²	50 mm	1.200 m³/h	@	125 Pa
PM-F-U15-305x305x69-GED-FGD-PH50	U15	ISO 55 U	305 mm	305 mm	69 mm	2,5 m²	50 mm	150 m³/h	@	140 Pa
PM-F-U15-305x610x69-GED-FGD-PH50	U15	ISO 55 U	305 mm	610 mm	69 mm	5,0 m²	50 mm	300 m³/h	@	140 Pa
PM-F-U15-457x457x69-GED-FGD-PH50	U15	ISO 55 U	457 mm	457 mm	69 mm	5,6 m²	50 mm	330 m³/h	@	140 Pa
PM-F-U15-610x610x69-GED-FGD-PH50	U15	ISO 55 U	610 mm	610 mm	69 mm	10,0 m²	50 mm	600 m³/h	@	140 Pa
PM-F-U15-610x762x69-GED-FGD-PH50	U15	ISO 55 U	610 mm	762 mm	69 mm	12,5 m²	50 mm	750 m³/h	@	140 Pa
PM-F-U15-610x915x69-GED-FGD-PH50	U15	ISO 55 U	610 mm	915 mm	69 mm	15,0 m²	50 mm	900 m³/h	@	140 Pa
PM-F-U15-610x1220x69-GED-FGD-PH50	U15	ISO 55 U	610 mm	1220 mm	69 mm	20,0 m²	50 mm	1.200 m³/h	@	140 Pa
PM-F-H13-305x305x78-GED-FGB-PH50	H13	ISO 35 H	305 mm	305 mm	78 mm	2,3 m²	50 mm	150 m³/h	@	100 Pa
PM-F-H13-305x610x78-GED-FGB-PH50	H13	ISO 35 H	305 mm	610 mm	78 mm	4,5 m²	50 mm	300 m³/h	@	100 Pa
PM-F-H13-457x457x78-GED-FGB-PH50	H13	ISO 35 H	457 mm	457 mm	78 mm	5,1 m²	50 mm	330 m³/h	@	100 Pa
PM-F-H13-457x610x78-GED-FGB-PH50	H13	ISO 35 H	457 mm	610 mm	78 mm	6,7 m²	50 mm	450 m³/h	@	100 Pa
PM-F-H13-535x535x78-GED-FGB-PH50	H13	ISO 35 H	535 mm	535 mm	78 mm	6,9 m²	50 mm	460 m³/h	@	100 Pa
PM-F-H13-575x575x78-GED-FGB-PH50	H13	ISO 35 H	575 mm	575 mm	78 mm	8,0 m²	50 mm	530 m³/h	@	100 Pa
PM-F-H13-610x610x78-GED-FGB-PH50	H13	ISO 35 H	610 mm	610 mm	78 mm	9,0 m²	50 mm	600 m³/h	@	100 Pa
PM-F-H13-610x762x78-GED-FGB-PH50	H13	ISO 35 H	610 mm	762 mm	78 mm	11,2 m²	50 mm	750 m³/h	@	100 Pa
PM-F-H13-610x915x78-GED-FGB-PH50	H13	ISO 35 H	610 mm	915 mm	78 mm	13,5 m²	50 mm	900 m³/h	@	100 Pa
PM-F-H13-762x762x78-GED-FGB-PH50	H13	ISO 35 H	762 mm	762 mm	78 mm	14,0 m²	50 mm	940 m³/h	@	100 Pa
PM-F-H13-915x915x78-GED-FGB-PH50	H13	ISO 35 H	915 mm	915 mm	78 mm	20,3 m²	50 mm	1.350 m³/h	@	100 Pa
PM-F-H13-610x1220x78-GED-FGB-PH50	H13	ISO 35 H	610 mm	1220 mm	78 mm	18,0 m²	50 mm	1.200 m³/h	@	100 Pa
PM-F-H14-305x305x78-GED-FGB-PH50	H14	ISO 45 H	305 mm	305 mm	78 mm	2,3 m²	50 mm	150 m³/h	@	125 Pa
PM-F-H14-305x610x78-GED-FGB-PH50	H14	ISO 45 H	305 mm	610 mm	78 mm	4,5 m²	50 mm	300 m³/h	@	125 Pa
PM-F-H14-457x457x78-GED-FGB-PH50	H14	ISO 45 H	457 mm	457 mm	78 mm	5,1 m²	50 mm	330 m³/h	@	125 Pa
PM-F-H14-457x610x78-GED-FGB-PH50	H14	ISO 45 H	457 mm	610 mm	78 mm	6,7 m²	50 mm	450 m³/h	@	125 Pa
PM-F-H14-535x535x78-GED-FGB-PH50	H14	ISO 45 H	535 mm	535 mm	78 mm	6,9 m²	50 mm	460 m³/h	@	125 Pa
PM-F-H14-575x575x78-GED-FGB-PH50	H14	ISO 45 H	575 mm	575 mm	78 mm	8,0 m²	50 mm	530 m³/h	@	125 Pa
PM-F-H14-610x610x78-GED-FGB-PH50	H14	ISO 45 H	610 mm	610 mm	78 mm	9,0 m²	50 mm	600 m³/h	@	125 Pa
PM-F-H14-610x762x78-GED-FGB-PH50	H14	ISO 45 H	610 mm	762 mm	78 mm	11,2 m²	50 mm	750 m³/h	@	125 Pa
PM-F-H14-610x915x78-GED-FGB-PH50	H14	ISO 45 H	610 mm	915 mm	78 mm	13,5 m²	50 mm	900 m³/h	@	125 Pa
PM-F-H14-762x762x78-GED-FGB-PH50	H14	ISO 45 H	762 mm	762 mm	78 mm	14,0 m²	50 mm	940 m³/h	@	125 Pa
PM-F-H14-915x915x78-GED-FGB-PH50	H14	ISO 45 H	915 mm	915 mm	78 mm	20,3 m²	50 mm	1.350 m³/h	@	125 Pa
PM-F-H14-610x1220x78-GED-FGB-PH50	H14	ISO 45 H	610 mm	1220 mm	78 mm	18,0 m²	50 mm	1.200 m³/h	@	125 Pa
PM-F-U15-305x305x78-GED-FGD-PH50	U15	ISO 55 U	305 mm	305 mm	78 mm	2,5 m²	50 mm	150 m³/h	@	140 Pa
PM-F-U15-305x610x78-GED-FGD-PH50	U15	ISO 55 U	305 mm	610 mm	78 mm	5,0 m²	50 mm	300 m³/h	@	140 Pa
PM-F-U15-457x457x78-GED-FGD-PH50	U15	ISO 55 U	457 mm	457 mm	78 mm	5,6 m²	50 mm	330 m³/h	@	140 Pa
PM-F-U15-610x610x78-GED-FGD-PH50	U15	ISO 55 U	610 mm	610 mm	78 mm	10,0 m²	50 mm	600 m³/h	@	140 Pa
PM-F-U15-610x762x78-GED-FGD-PH50	U15	ISO 55 U	610 mm	762 mm	78 mm	12,5 m²	50 mm	750 m³/h	@	140 Pa
PM-F-U15-610x915x78-GED-FGD-PH50	U15	ISO 55 U	610 mm	915 mm	78 mm	15,0 m²	50 mm	900 m³/h	@	140 Pa
PM-F-U15-610x1220x78-GED-FGD-PH50	U15	ISO 55 U	610 mm	1220 mm	78 mm	20,0 m²	50 mm	1.200 m³/h	@	140 Pa
PM-F-H13-305x305x90-GED-FGB-PH50	H13	ISO 35 H	305 mm	305 mm	90 mm	2,3 m²	50 mm	150 m³/h	@	100 Pa
PM-F-H13-305x610x90-GED-FGB-PH50	H13	ISO 35 H	305 mm	610 mm	90 mm	4,5 m²	50 mm	300 m³/h	@	100 Pa
PM-F-H13-457x457x90-GED-FGB-PH50	H13	ISO 35 H	457 mm	457 mm	90 mm	5,1 m²	50 mm	330 m³/h	@	100 Pa
PM-F-H13-457x610x90-GED-FGB-PH50	H13	ISO 35 H	457 mm	610 mm	90 mm	6,7 m²	50 mm	450 m³/h	@	100 Pa
PM-F-H13-535x535x90-GED-FGB-PH50	H13	ISO 35 H	535 mm	535 mm	90 mm	6,9 m²	50 mm	460 m³/h	@	100 Pa
PM-F-H13-575x575x90-GED-FGB-PH50	H13	ISO 35 H	575 mm	575 mm	90 mm	8,0 m²	50 mm	530 m³/h	@	100 Pa
PM-F-H13-610x610x90-GED-FGB-PH50	H13	ISO 35 H	610 mm	610 mm	90 mm	9,0 m²	50 mm	600 m³/h	@	100 Pa
PM-F-H13-610x762x90-GED-FGB-PH50	H13	ISO 35 H	610 mm	762 mm	90 mm	11,2 m²	50 mm	750 m³/h	@	100 Pa
PM-F-H13-610x915x90-GED-FGB-PH50	H13	ISO 35 H	610 mm	915 mm	90 mm	13,5 m²	50 mm	900 m³/h	@	100 Pa
PM-F-H13-762x762x90-GED-FGB-PH50	H13	ISO 35 H	762 mm	762 mm	90 mm	14,0 m²	50 mm	940 m³/h	@	100 Pa
PM-F-H13-915x915x90-GED-FGB-PH50	H13	ISO 35 H	915 mm	915 mm	90 mm	20,3 m²	50 mm	1.350 m³/h	@	100 Pa
PM-F-H13-610x1220x90-GED-FGB-PH50	H13	ISO 35 H	610 mm	1220 mm	90 mm	18,0 m²	50 mm	1.200 m³/h	@	100 Pa
PM-F-H14-305x305x90-GED-FGB-PH50	H14	ISO 45 H	305 mm	305 mm	90 mm	2,3 m²	50 mm	150 m³/h	@	125 Pa
PM-F-H14-305x610x90-GED-FGB-PH50	H14	ISO 45 H	305 mm	610 mm	90 mm	4,5 m²	50 mm	300 m³/h	@	125 Pa
PM-F-H14-457x457x90-GED-FGB-PH50	H14	ISO 45 H	457 mm	457 mm	90 mm	5,1 m²	50 mm	330 m³/h	@	125 Pa
PM-F-H14-457x610x90-GED-FGB-PH50	H14	ISO 45 H	457 mm	610 mm	90 mm	6,7 m²	50 mm	450 m³/h	@	125 Pa
PM-F-H14-535x535x90-GED-FGB-PH50	H14	ISO 45 H	535 mm	535 mm	90 mm	6,9 m²	50 mm	460 m³/h	@	125 Pa
PM-F-H14-575x575x90-GED-FGB-PH50	H14	ISO 45 H	575 mm	575 mm	90 mm	8,0 m²	50 mm	530 m³/h	@	125 Pa
PM-F-H14-610x610x90-GED-FGB-PH50	H14	ISO 45 H	610 mm	610 mm	90 mm	9,0 m²	50 mm	600 m³/h	@	125 Pa
PM-F-H14-610x762x90-GED-FGB-PH50	H14	ISO 45 H	610 mm	762 mm	90 mm	11,2 m²	50 mm	750 m³/h	@	125 Pa
PM-F-H14-610x915x90-GED-FGB-PH50	H14	ISO 45 H	610 mm	915 mm	90 mm	13,5 m²	50 mm	900 m³/h	@	125 Pa
PM-F-H14-762x762x90-GED-FGB-PH50	H14	ISO 45 H	762 mm	762 mm	90 mm	14,0 m²	50 mm	940 m³/h	@	125 Pa
PM-F-H14-915x915x90-GED-FGB-PH50	H14	ISO 45 H	915 mm	915 mm	90 mm	20,3 m²	50 mm	1.350 m³/h	@	125 Pa
PM-F-H14-610x1220x90-GED-FGB-PH50	H14	ISO 45 H	610 mm	1220 mm	90 mm	18,0 m²	50 mm	1.200 m³/h	@	125 Pa
PM-F-U15-305x305x90-GED-FGD-PH50	U15	ISO 55 U	305 mm	305 mm	90 mm	2,5 m²	50 mm	150 m³/h	@	140 Pa
PM-F-U15-305x610x90-GED-FGD-PH50	U15	ISO 55 U	305 mm	610 mm	90 mm	5,0 m²	50 mm	300 m³/h	@	140 Pa
PM-F-U15-457x457x90-GED-FGD-PH50	U15	ISO 55 U	457 mm	457 mm	90 mm	5,6 m²	50 mm	330 m³/h	@	140 Pa
PM-F-U15-610x610x90-GED-FGD-PH50	U15	ISO 55 U	610 mm	610 mm	90 mm	10,0 m²	50 mm	600 m³/h	@	140 Pa
PM-F-U15-610x762x90-GED-FGD-PH50	U15	ISO 55 U	610 mm	762 mm	90 mm	12,5 m²	50 mm	750 m³/h	@	140 Pa
PM-F-U15-610x915x90-GED-FGD-PH50	U15	ISO 55 U	610 mm	915 mm	90 mm	15,0 m²	50 mm	900 m³/h	@	140 Pa
PM-F-U15-610x1220x90-GED-FGD-PH50	U15	ISO 55 U	610 mm	1220 mm	90 mm	20,0 m²	50 mm	1.200 m³/h	@	140 Pa
PM-F-H13-305x305x90-GED-FGB-PH65	H13	ISO 35 H	305 mm	305 mm	90 mm	2,9 m²	65 mm	150 m³/h	@	85 Pa
PM-F-H13-305x610x90-GED-FGB-PH65	H13	ISO 35 H	305 mm	610 mm	90 mm	5,9 m²	65 mm	300 m³/h	@	85 Pa
PM-F-H13-457x457x90-GED-FGB-PH65	H13	ISO 35 H	457 mm	457 mm	90 mm	6,6 m²	65 mm	330 m³/h	@	85 Pa
PM-F-H13-610x610x90-GED-FGB-PH65	H13	ISO 35 H	610 mm	610 mm	90 mm	11,7 m²	65 mm	600 m³/h	@	85 Pa
PM-F-H13-610x762x90-GED-FGB-PH65	H13	ISO 35 H	610 mm	762 mm	90 mm	14,6 m²	65 mm	750 m³/h	@	85 Pa
PM-F-H13-610x915x90-GED-FGB-PH65	H13	ISO 35 H	610 mm	915 mm	90 mm	17,6 m²	65 mm	900 m³/h	@	85 Pa
PM-F-H13-610x1220x90-GED-FGB-PH65	H13	ISO 35 H	610 mm	1220 mm	90 mm	23,4 m²	65 mm	1.200 m³/h	@	85 Pa
PM-F-H14-305x305x90-GED-FGB-PH65	H14	ISO 45 H	305 mm	305 mm	90 mm	2,9 m²	65 mm	150 m³/h	@	110 Pa
PM-F-H14-305x610x90-GED-FGB-PH65	H14	ISO 45 H	305 mm	610 mm	90 mm	5,9 m²	65 mm	300 m³/h	@	110 Pa
PM-F-H14-457x457x90-GED-FGB-PH65	H14	ISO 45 H	457 mm	457 mm	90 mm	6,6 m²	65 mm	330 m³/h	@	110 Pa
PM-F-H14-610x610x90-GED-FGB-PH65	H14	ISO 45 H	610 mm	610 mm	90 mm	11,7 m²	65 mm	600 m³/h	@	110 Pa
PM-F-H14-610x762x90-GED-FGB-PH65	H14	ISO 45 H	610 mm	762 mm	90 mm	14,6 m²	65 mm	750 m³/h	@	110 Pa
PM-F-H14-610x915x90-GED-FGB-PH65	H14	ISO 45 H	610 mm	915 mm	90 mm	17,6 m²	65 mm	900 m³/h	@	110 Pa
PM-F-H14-610x1220x90-GED-FGB-PH65	H14	ISO 45 H	610 mm	1220 mm	90 mm	23,4 m²	65 mm	1.200 m³/h	@	110 Pa
PM-F-U15-305x305x90-GED-FGD-PH65	U15	ISO 55 U	305 mm	305 mm	90 mm	2,9 m²	65 mm	150 m³/h	@	125 Pa
PM-F-U15-305x610x90-GED-FGD-PH65	U15	ISO 55 U	305 mm	610 mm	90 mm	5,9 m²	65 mm	300 m³/h	@	125 Pa
PM-F-U15-457x457x90-GED-FGD-PH65	U15	ISO 55 U	457 mm	457 mm	90 mm	6,6 m²	65 mm	330 m³/h	@	125 Pa
PM-F-U15-610x610x90-GED-FGD-PH65	U15	ISO 55 U	610 mm	610 mm	90 mm	11,7 m²	65 mm	600 m³/h	@	125 Pa
PM-F-U15-610x762x90-GED-FGD-PH65	U15	ISO 55 U	610 mm	762 mm	90 mm	14,6 m²	65 mm	750 m³/h	@	125 Pa
PM-F-U15-610x915x90-GED-FGD-PH65	U15	ISO 55 U	610 mm	915 mm	90 mm	17,6 m²	65 mm	900 m³/h	@	125 Pa
PM-F-U15-610x1220x90-GED-FGD-PH65	U15	ISO 55 U	610 mm	1220 mm	90 mm	23,4 m²	65 mm	1.200 m³/h	@	125 Pa
PM-F-H13-305x305x100-GED-FGB-PH50	H13	ISO 35 H	305 mm	305 mm	100 mm	2,3 m²	50 mm	150 m³/h	@	100 Pa
PM-F-H13-305x610x100-GED-FGB-PH50	H13	ISO 35 H	305 mm	610 mm	100 mm	4,5 m²	50 mm	300 m³/h	@	100 Pa
PM-F-H13-457x457x100-GED-FGB-PH50	H13	ISO 35 H	457 mm	457 mm	100 mm	5,1 m²	50 mm	330 m³/h	@	100 Pa
PM-F-H13-610x610x100-GED-FGB-PH50	H13	ISO 35 H	610 mm	610 mm	100 mm	9,0 m²	50 mm	600 m³/h	@	100 Pa
PM-F-H13-610x762x100-GED-FGB-PH50	H13	ISO 35 H	610 mm	762 mm	100 mm	11,2 m²	50 mm	750 m³/h	@	100 Pa
PM-F-H13-610x915x100-GED-FGB-PH50	H13	ISO 35 H	610 mm	915 mm	100 mm	13,5 m²	50 mm	900 m³/h	@	100 Pa
PM-F-H13-610x1220x100-GED-FGB-PH50	H13	ISO 35 H	610 mm	1220 mm	100 mm	18,0 m²	50 mm	1.200 m³/h	@	100 Pa
PM-F-H14-305x305x100-GED-FGB-PH50	H14	ISO 45 H	305 mm	305 mm	100 mm	2,4 m²	50 mm	150 m³/h	@	125 Pa
PM-F-H14-305x610x100-GED-FGB-PH50	H14	ISO 45 H	305 mm	610 mm	100 mm	4,7 m²	50 mm	300 m³/h	@	125 Pa
PM-F-H14-457x457x100-GED-FGB-PH50	H14	ISO 45 H	457 mm	457 mm	100 mm	5,3 m²	50 mm	330 m³/h	@	125 Pa
PM-F-H14-610x610x100-GED-FGB-PH50	H14	ISO 45 H	610 mm	610 mm	100 mm	9,4 m²	50 mm	600 m³/h	@	125 Pa
PM-F-H14-610x762x100-GED-FGB-PH50	H14	ISO 45 H	610 mm	762 mm	100 mm	11,7 m²	50 mm	750 m³/h	@	125 Pa
PM-F-H14-610x915x100-GED-FGB-PH50	H14	ISO 45 H	610 mm	915 mm	100 mm	14,1 m²	50 mm	900 m³/h	@	125 Pa
PM-F-H14-610x1220x100-GED-FGB-PH50	H14	ISO 45 H	610 mm	1220 mm	100 mm	18,8 m²	50 mm	1.200 m³/h	@	125 Pa
PM-F-H13-305x305x100-GED-FGB-PH75	H13	ISO 35 H	305 mm	305 mm	100 mm	3,4 m²	75 mm	150 m³/h	@	75 Pa
PM-F-H13-305x610x100-GED-FGB-PH75	H13	ISO 35 H	305 mm	610 mm	100 mm	6,8 m²	75 mm	300 m³/h	@	75 Pa
PM-F-H13-457x457x100-GED-FGB-PH75	H13	ISO 35 H	457 mm	457 mm	100 mm	7,6 m²	75 mm	330 m³/h	@	75 Pa
PM-F-H13-610x610x100-GED-FGB-PH75	H13	ISO 35 H	610 mm	610 mm	100 mm	13,5 m²	75 mm	600 m³/h	@	75 Pa
PM-F-H13-610x762x100-GED-FGB-PH75	H13	ISO 35 H	610 mm	762 mm	100 mm	16,9 m²	75 mm	750 m³/h	@	75 Pa
PM-F-H13-610x915x100-GED-FGB-PH75	H13	ISO 35 H	610 mm	915 mm	100 mm	20,3 m²	75 mm	900 m³/h	@	75 Pa
PM-F-H13-610x1220x100-GED-FGB-PH75	H13	ISO 35 H	610 mm	1220 mm	100 mm	27,0 m²	75 mm	1.200 m³/h	@	75 Pa
PM-F-H14-305x305x100-GED-FGB-PH75	H14	ISO 45 H	305 mm	305 mm	100 mm	3,5 m²	75 mm	150 m³/h	@	90 Pa
PM-F-H14-305x610x100-GED-FGB-PH75	H14	ISO 45 H	305 mm	610 mm	100 mm	7,1 m²	75 mm	300 m³/h	@	90 Pa
PM-F-H14-457x457x100-GED-FGB-PH75	H14	ISO 45 H	457 mm	457 mm	100 mm	7,9 m²	75 mm	330 m³/h	@	90 Pa
PM-F-H14-610x610x100-GED-FGB-PH75	H14	ISO 45 H	610 mm	610 mm	100 mm	14,1 m²	75 mm	600 m³/h	@	90 Pa
PM-F-H14-610x762x100-GED-FGB-PH75	H14	ISO 45 H	610 mm	762 mm	100 mm	17,6 m²	75 mm	750 m³/h	@	90 Pa
PM-F-H14-610x915x100-GED-FGB-PH75	H14	ISO 45 H	610 mm	915 mm	100 mm	21,2 m²	75 mm	900 m³/h	@	90 Pa
PM-F-H14-610x1220x100-GED-FGB-PH75	H14	ISO 45 H	610 mm	1220 mm	100 mm	28,2 m²	75 mm	1.200 m³/h	@	90 Pa
PM-F-H13-305x305x110-GED-FGB-PH50	H13	ISO 35 H	305 mm	305 mm	110 mm	2,3 m²	50 mm	150 m³/h	@	100 Pa
PM-F-H13-305x610x110-GED-FGB-PH50	H13	ISO 35 H	305 mm	610 mm	110 mm	4,5 m²	50 mm	300 m³/h	@	100 Pa
PM-F-H13-457x457x110-GED-FGB-PH50	H13	ISO 35 H	457 mm	457 mm	110 mm	5,1 m²	50 mm	330 m³/h	@	100 Pa
PM-F-H13-610x610x110-GED-FGB-PH50	H13	ISO 35 H	610 mm	610 mm	110 mm	9,0 m²	50 mm	600 m³/h	@	100 Pa
PM-F-H13-610x762x110-GED-FGB-PH50	H13	ISO 35 H	610 mm	762 mm	110 mm	11,2 m²	50 mm	750 m³/h	@	100 Pa
PM-F-H13-610x915x110-GED-FGB-PH50	H13	ISO 35 H	610 mm	915 mm	110 mm	13,5 m²	50 mm	900 m³/h	@	100 Pa
PM-F-H13-610x1220x110-GED-FGB-PH50	H13	ISO 35 H	610 mm	1220 mm	110 mm	18,0 m²	50 mm	1.200 m³/h	@	100 Pa
PM-F-H14-305x305x110-GED-FGB-PH50	H14	ISO 45 H	305 mm	305 mm	110 mm	2,4 m²	50 mm	150 m³/h	@	125 Pa
PM-F-H14-305x610x110-GED-FGB-PH50	H14	ISO 45 H	305 mm	610 mm	110 mm	4,7 m²	50 mm	300 m³/h	@	125 Pa
PM-F-H14-457x457x110-GED-FGB-PH50	H14	ISO 45 H	457 mm	457 mm	110 mm	5,3 m²	50 mm	330 m³/h	@	125 Pa
PM-F-H14-610x610x110-GED-FGB-PH50	H14	ISO 45 H	610 mm	610 mm	110 mm	9,4 m²	50 mm	600 m³/h	@	125 Pa
PM-F-H14-610x762x110-GED-FGB-PH50	H14	ISO 45 H	610 mm	762 mm	110 mm	11,7 m²	50 mm	750 m³/h	@	125 Pa
PM-F-H14-610x915x110-GED-FGB-PH50	H14	ISO 45 H	610 mm	915 mm	110 mm	14,1 m²	50 mm	900 m³/h	@	125 Pa
PM-F-H14-610x1220x110-GED-FGB-PH50	H14	ISO 45 H	610 mm	1220 mm	110 mm	18,8 m²	50 mm	1.200 m³/h	@	125 Pa
PM-F-H13-305x305x110-GED-FGB-PH85	H13	ISO 35 H	305 mm	305 mm	110 mm	3,8 m²	75 mm	150 m³/h	@	70 Pa
PM-F-H13-305x610x110-GED-FGB-PH85	H13	ISO 35 H	305 mm	610 mm	110 mm	7,7 m²	75 mm	300 m³/h	@	70 Pa
PM-F-H13-457x457x110-GED-FGB-PH85	H13	ISO 35 H	457 mm	457 mm	110 mm	8,6 m²	75 mm	330 m³/h	@	70 Pa
PM-F-H13-610x610x110-GED-FGB-PH85	H13	ISO 35 H	610 mm	610 mm	110 mm	15,3 m²	75 mm	600 m³/h	@	70 Pa
PM-F-H13-610x762x110-GED-FGB-PH85	H13	ISO 35 H	610 mm	762 mm	110 mm	19,1 m²	75 mm	750 m³/h	@	70 Pa
PM-F-H13-610x915x110-GED-FGB-PH85	H13	ISO 35 H	610 mm	915 mm	110 mm	23,0 m²	75 mm	900 m³/h	@	70 Pa
PM-F-H13-610x1220x110-GED-FGB-PH85	H13	ISO 35 H	610 mm	1220 mm	110 mm	30,6 m²	75 mm	1.200 m³/h	@	70 Pa
PM-F-H14-305x305x110-GED-FGB-PH85	H14	ISO 45 H	305 mm	305 mm	110 mm	4,0 m²	75 mm	150 m³/h	@	85 Pa
PM-F-H14-305x610x110-GED-FGB-PH85	H14	ISO 45 H	305 mm	610 mm	110 mm	8,0 m²	75 mm	300 m³/h	@	85 Pa
PM-F-H14-457x457x110-GED-FGB-PH85	H14	ISO 45 H	457 mm	457 mm	110 mm	9,0 m²	75 mm	330 m³/h	@	85 Pa
PM-F-H14-610x610x110-GED-FGB-PH85	H14	ISO 45 H	610 mm	610 mm	110 mm	16,0 m²	75 mm	600 m³/h	@	85 Pa
PM-F-H14-610x762x110-GED-FGB-PH85	H14	ISO 45 H	610 mm	762 mm	110 mm	20,0 m²	75 mm	750 m³/h	@	85 Pa
PM-F-H14-610x915x110-GED-FGB-PH85	H14	ISO 45 H	610 mm	915 mm	110 mm	24,0 m²	75 mm	900 m³/h	@	85 Pa
PM-F-H14-610x1220x110-GED-FGB-PH85	H14	ISO 45 H	610 mm	1220 mm	110 mm	32,0 m²	75 mm	1.200 m³/h	@	85 Pa
PM-F-H13-305x305x117-GED-FGB-PH50	H13	ISO 35 H	305 mm	305 mm	117 mm	2,3 m²	50 mm	150 m³/h	@	100 Pa
PM-F-H13-305x610x117-GED-FGB-PH50	H13	ISO 35 H	305 mm	610 mm	117 mm	4,5 m²	50 mm	300 m³/h	@	100 Pa
PM-F-H13-457x457x117-GED-FGB-PH50	H13	ISO 35 H	457 mm	457 mm	117 mm	5,1 m²	50 mm	330 m³/h	@	100 Pa
PM-F-H13-610x610x117-GED-FGB-PH50	H13	ISO 35 H	610 mm	610 mm	117 mm	9,0 m²	50 mm	600 m³/h	@	100 Pa
PM-F-H13-610x762x117-GED-FGB-PH50	H13	ISO 35 H	610 mm	762 mm	117 mm	11,2 m²	50 mm	750 m³/h	@	100 Pa
PM-F-H13-610x915x117-GED-FGB-PH50	H13	ISO 35 H	610 mm	915 mm	117 mm	13,5 m²	50 mm	900 m³/h	@	100 Pa
PM-F-H13-610x1220x117-GED-FGB-PH50	H13	ISO 35 H	610 mm	1220 mm	117 mm	18,0 m²	50 mm	1.200 m³/h	@	100 Pa
PM-F-H14-305x305x117-GED-FGB-PH50	H14	ISO 45 H	305 mm	305 mm	117 mm	2,4 m²	50 mm	150 m³/h	@	125 Pa
PM-F-H14-305x610x117-GED-FGB-PH50	H14	ISO 45 H	305 mm	610 mm	117 mm	4,7 m²	50 mm	300 m³/h	@	125 Pa
PM-F-H14-457x457x117-GED-FGB-PH50	H14	ISO 45 H	457 mm	457 mm	117 mm	5,3 m²	50 mm	330 m³/h	@	125 Pa
PM-F-H14-610x610x117-GED-FGB-PH50	H14	ISO 45 H	610 mm	610 mm	117 mm	9,4 m²	50 mm	600 m³/h	@	125 Pa
PM-F-H14-610x762x117-GED-FGB-PH50	H14	ISO 45 H	610 mm	762 mm	117 mm	11,7 m²	50 mm	750 m³/h	@	125 Pa
PM-F-H14-610x915x117-GED-FGB-PH50	H14	ISO 45 H	610 mm	915 mm	117 mm	14,1 m²	50 mm	900 m³/h	@	125 Pa
PM-F-H14-610x1220x117-GED-FGB-PH50	H14	ISO 45 H	610 mm	1220 mm	117 mm	18,8 m²	50 mm	1.200 m³/h	@	125 Pa
PM-F-H13-305x305x117-GED-FGB-PH90	H13	ISO 35 H	305 mm	305 mm	117 mm	3,8 m²	90 mm	150 m³/h	@	70 Pa
PM-F-H13-305x610x117-GED-FGB-PH90	H13	ISO 35 H	305 mm	610 mm	117 mm	7,7 m²	90 mm	300 m³/h	@	70 Pa
PM-F-H13-457x457x117-GED-FGB-PH90	H13	ISO 35 H	457 mm	457 mm	117 mm	8,6 m²	90 mm	330 m³/h	@	70 Pa
PM-F-H13-610x610x117-GED-FGB-PH90	H13	ISO 35 H	610 mm	610 mm	117 mm	15,3 m²	90 mm	600 m³/h	@	70 Pa
PM-F-H13-610x762x117-GED-FGB-PH90	H13	ISO 35 H	610 mm	762 mm	117 mm	19,1 m²	90 mm	750 m³/h	@	70 Pa
PM-F-H13-610x915x117-GED-FGB-PH90	H13	ISO 35 H	610 mm	915 mm	117 mm	23,0 m²	90 mm	900 m³/h	@	70 Pa
PM-F-H13-610x1220x117-GED-FGB-PH90	H13	ISO 35 H	610 mm	1220 mm	117 mm	30,6 m²	90 mm	1.200 m³/h	@	70 Pa
PM-F-H14-305x305x117-GED-FGB-PH90	H14	ISO 45 H	305 mm	305 mm	117 mm	4,0 m²	90 mm	150 m³/h	@	85 Pa
PM-F-H14-305x610x117-GED-FGB-PH90	H14	ISO 45 H	305 mm	610 mm	117 mm	8,0 m²	90 mm	300 m³/h	@	85 Pa
PM-F-H14-457x457x117-GED-FGB-PH90	H14	ISO 45 H	457 mm	457 mm	117 mm	9,0 m²	90 mm	330 m³/h	@	85 Pa
PM-F-H14-610x610x117-GED-FGB-PH90	H14	ISO 45 H	610 mm	610 mm	117 mm	16,0 m²	90 mm	600 m³/h	@	85 Pa
PM-F-H14-610x762x117-GED-FGB-PH90	H14	ISO 45 H	610 mm	762 mm	117 mm	20,0 m²	90 mm	750 m³/h	@	85 Pa
PM-F-H14-610x915x117-GED-FGB-PH90	H14	ISO 45 H	610 mm	915 mm	117 mm	24,0 m²	90 mm	900 m³/h	@	85 Pa
PM-F-H14-610x1220x117-GED-FGB-PH90	H14	ISO 45 H	610 mm	1220 mm	117 mm	32,0 m²	90 mm	1.200 m³/h	@	85 Pa
PM-F-H13-305x305x125-GED-FGB-PH50	H13	ISO 35 H	305 mm	305 mm	125 mm	2,3 m²	50 mm	150 m³/h	@	100 Pa
PM-F-H13-305x610x125-GED-FGB-PH50	H13	ISO 35 H	305 mm	610 mm	125 mm	4,5 m²	50 mm	300 m³/h	@	100 Pa
PM-F-H13-457x457x125-GED-FGB-PH50	H13	ISO 35 H	457 mm	457 mm	125 mm	5,1 m²	50 mm	330 m³/h	@	100 Pa
PM-F-H13-610x610x125-GED-FGB-PH50	H13	ISO 35 H	610 mm	610 mm	125 mm	9,0 m²	50 mm	600 m³/h	@	100 Pa
PM-F-H13-610x762x125-GED-FGB-PH50	H13	ISO 35 H	610 mm	762 mm	125 mm	11,2 m²	50 mm	750 m³/h	@	100 Pa
PM-F-H13-610x915x125-GED-FGB-PH50	H13	ISO 35 H	610 mm	915 mm	125 mm	13,5 m²	50 mm	900 m³/h	@	100 Pa
PM-F-H13-610x1220x125-GED-FGB-PH50	H13	ISO 35 H	610 mm	1220 mm	125 mm	18,0 m²	50 mm	1.200 m³/h	@	100 Pa
PM-F-H14-305x305x125-GED-FGB-PH50	H14	ISO 45 H	305 mm	305 mm	125 mm	2,4 m²	50 mm	150 m³/h	@	125 Pa
PM-F-H14-305x610x125-GED-FGB-PH50	H14	ISO 45 H	305 mm	610 mm	125 mm	4,7 m²	50 mm	300 m³/h	@	125 Pa
PM-F-H14-457x457x125-GED-FGB-PH50	H14	ISO 45 H	457 mm	457 mm	125 mm	5,3 m²	50 mm	330 m³/h	@	125 Pa
PM-F-H14-610x610x125-GED-FGB-PH50	H14	ISO 45 H	610 mm	610 mm	125 mm	9,4 m²	50 mm	600 m³/h	@	125 Pa
PM-F-H14-610x762x125-GED-FGB-PH50	H14	ISO 45 H	610 mm	762 mm	125 mm	11,7 m²	50 mm	750 m³/h	@	125 Pa
PM-F-H14-610x915x125-GED-FGB-PH50	H14	ISO 45 H	610 mm	915 mm	125 mm	14,1 m²	50 mm	900 m³/h	@	125 Pa
PM-F-H14-610x1220x125-GED-FGB-PH50	H14	ISO 45 H	610 mm	1220 mm	125 mm	18,8 m²	50 mm	1.200 m³/h	@	125 Pa
PM-F-H13-305x305x125-GED-FGB-PH100	H13	ISO 35 H	305 mm	305 mm	125 mm	4,5 m²	100 mm	150 m³/h	@	65 Pa
PM-F-H13-305x610x125-GED-FGB-PH100	H13	ISO 35 H	305 mm	610 mm	125 mm	9,0 m²	100 mm	300 m³/h	@	65 Pa
PM-F-H13-457x457x125-GED-FGB-PH100	H13	ISO 35 H	457 mm	457 mm	125 mm	10,1 m²	100 mm	330 m³/h	@	65 Pa
PM-F-H13-610x610x125-GED-FGB-PH100	H13	ISO 35 H	610 mm	610 mm	125 mm	18,0 m²	100 mm	600 m³/h	@	65 Pa
PM-F-H13-610x762x125-GED-FGB-PH100	H13	ISO 35 H	610 mm	762 mm	125 mm	22,5 m²	100 mm	750 m³/h	@	65 Pa
PM-F-H13-610x915x125-GED-FGB-PH100	H13	ISO 35 H	610 mm	915 mm	125 mm	27,0 m²	100 mm	900 m³/h	@	65 Pa
PM-F-H13-610x1220x125-GED-FGB-PH100	H13	ISO 35 H	610 mm	1220 mm	125 mm	36,0 m²	100 mm	1.200 m³/h	@	65 Pa
PM-F-H14-305x305x125-GED-FGB-PH100	H14	ISO 45 H	305 mm	305 mm	125 mm	4,7 m²	100 mm	150 m³/h	@	80 Pa
PM-F-H14-305x610x125-GED-FGB-PH100	H14	ISO 45 H	305 mm	610 mm	125 mm	9,4 m²	100 mm	300 m³/h	@	80 Pa
PM-F-H14-457x457x125-GED-FGB-PH100	H14	ISO 45 H	457 mm	457 mm	125 mm	10,6 m²	100 mm	330 m³/h	@	80 Pa
PM-F-H14-610x610x125-GED-FGB-PH100	H14	ISO 45 H	610 mm	610 mm	125 mm	18,8 m²	100 mm	600 m³/h	@	80 Pa
PM-F-H14-610x762x125-GED-FGB-PH100	H14	ISO 45 H	610 mm	762 mm	125 mm	23,5 m²	100 mm	750 m³/h	@	80 Pa
PM-F-H14-610x915x125-GED-FGB-PH100	H14	ISO 45 H	610 mm	915 mm	125 mm	28,2 m²	100 mm	900 m³/h	@	80 Pa
PM-F-H14-610x1220x125-GED-FGB-PH100	H14	ISO 45 H	610 mm	1220 mm	125 mm	37,6 m²	100 mm	1.200 m³/h	@	80 Pa
PM-F-H13-305x305x150-GED-FGB-PH50	H13	ISO 35 H	305 mm	305 mm	150 mm	2,3 m²	50 mm	150 m³/h	@	100 Pa
PM-F-H13-305x610x150-GED-FGB-PH50	H13	ISO 35 H	305 mm	610 mm	150 mm	4,5 m²	50 mm	300 m³/h	@	100 Pa
PM-F-H13-457x457x150-GED-FGB-PH50	H13	ISO 35 H	457 mm	457 mm	150 mm	5,1 m²	50 mm	330 m³/h	@	100 Pa
PM-F-H13-610x610x150-GED-FGB-PH50	H13	ISO 35 H	610 mm	610 mm	150 mm	9,0 m²	50 mm	600 m³/h	@	100 Pa
PM-F-H13-610x762x150-GED-FGB-PH50	H13	ISO 35 H	610 mm	762 mm	150 mm	11,2 m²	50 mm	750 m³/h	@	100 Pa
PM-F-H13-610x915x150-GED-FGB-PH50	H13	ISO 35 H	610 mm	915 mm	150 mm	13,5 m²	50 mm	900 m³/h	@	100 Pa
PM-F-H13-610x1220x150-GED-FGB-PH50	H13	ISO 35 H	610 mm	1220 mm	150 mm	18,0 m²	50 mm	1.200 m³/h	@	100 Pa
PM-F-H14-305x305x150-GED-FGB-PH50	H14	ISO 45 H	305 mm	305 mm	150 mm	2,4 m²	50 mm	150 m³/h	@	125 Pa
PM-F-H14-305x610x150-GED-FGB-PH50	H14	ISO 45 H	305 mm	610 mm	150 mm	4,7 m²	50 mm	300 m³/h	@	125 Pa
PM-F-H14-457x457x150-GED-FGB-PH50	H14	ISO 45 H	457 mm	457 mm	150 mm	5,3 m²	50 mm	330 m³/h	@	125 Pa
PM-F-H14-610x610x150-GED-FGB-PH50	H14	ISO 45 H	610 mm	610 mm	150 mm	9,4 m²	50 mm	600 m³/h	@	125 Pa
PM-F-H14-610x762x150-GED-FGB-PH50	H14	ISO 45 H	610 mm	762 mm	150 mm	11,7 m²	50 mm	750 m³/h	@	125 Pa
PM-F-H14-610x915x150-GED-FGB-PH50	H14	ISO 45 H	610 mm	915 mm	150 mm	14,1 m²	50 mm	900 m³/h	@	125 Pa
PM-F-H14-610x1220x150-GED-FGB-PH50	H14	ISO 45 H	610 mm	1220 mm	150 mm	18,8 m²	50 mm	1.200 m³/h	@	125 Pa
PM-F-H13-305x305x150-GED-FGB-PH125	H13	ISO 35 H	305 mm	305 mm	150 mm	5,6 m²	125 mm	150 m³/h	@	55 Pa
PM-F-H13-305x610x150-GED-FGB-PH125	H13	ISO 35 H	305 mm	610 mm	150 mm	11,3 m²	125 mm	300 m³/h	@	55 Pa
PM-F-H13-457x457x150-GED-FGB-PH125	H13	ISO 35 H	457 mm	457 mm	150 mm	12,6 m²	125 mm	330 m³/h	@	55 Pa
PM-F-H13-610x610x150-GED-FGB-PH125	H13	ISO 35 H	610 mm	610 mm	150 mm	22,5 m²	125 mm	600 m³/h	@	55 Pa
PM-F-H13-610x762x150-GED-FGB-PH125	H13	ISO 35 H	610 mm	762 mm	150 mm	28,1 m²	125 mm	750 m³/h	@	55 Pa
PM-F-H13-610x915x150-GED-FGB-PH125	H13	ISO 35 H	610 mm	915 mm	150 mm	33,8 m²	125 mm	900 m³/h	@	55 Pa
PM-F-H13-610x1220x150-GED-FGB-PH125	H13	ISO 35 H	610 mm	1220 mm	150 mm	45,0 m²	125 mm	1.200 m³/h	@	55 Pa
PM-F-H14-305x305x150-GED-FGB-PH125	H14	ISO 45 H	305 mm	305 mm	150 mm	5,9 m²	125 mm	150 m³/h	@	70 Pa
PM-F-H14-305x610x150-GED-FGB-PH125	H14	ISO 45 H	305 mm	610 mm	150 mm	11,8 m²	125 mm	300 m³/h	@	70 Pa
PM-F-H14-457x457x150-GED-FGB-PH125	H14	ISO 45 H	457 mm	457 mm	150 mm	13,2 m²	125 mm	330 m³/h	@	70 Pa
PM-F-H14-610x610x150-GED-FGB-PH125	H14	ISO 45 H	610 mm	610 mm	150 mm	23,5 m²	125 mm	600 m³/h	@	70 Pa
PM-F-H14-610x762x150-GED-FGB-PH125	H14	ISO 45 H	610 mm	762 mm	150 mm	29,4 m²	125 mm	750 m³/h	@	70 Pa
PM-F-H14-610x915x150-GED-FGB-PH125	H14	ISO 45 H	610 mm	915 mm	150 mm	35,3 m²	125 mm	900 m³/h	@	70 Pa
PM-F-H14-610x1220x150-GED-FGB-PH125	H14	ISO 45 H	610 mm	1220 mm	150 mm	47,0 m²	125 mm	1.200 m³/h	@	70 Pa

Applications

Panel MDF HEPA Filters are ideal for:

ISO classified cleanrooms
Hospitals and laboratories
Controlled industrial environments

Selection Information

To ensure correct selection, please provide:

Required airflow (m³/h)
Panel dimensions (W × H × D)
Efficiency class (H13 / H14)
Installation type

Contact APC for technical support and quotation.

Panel MDF HEPA Filter

Key Features

We are happy to assist you.

Products

About

Downloads
