ABSOLEX V-Compact Plastic HEPA Filters are engineered for high-airflow HVAC and clean air systems where maximum filtration area and low pressure drop are required in a compact footprint. With mini-pleat fiberglass media and a corrosion-resistant plastic frame, the VCP series delivers reliable H13 / H14 HEPA performance for critical environments such as pharmaceutical, food & beverage, and electronics facilities.
Product Overview
The V-Compact (V-bank) design increases media surface area compared to flat filters, enabling higher airflow handling while supporting stable energy performance across the filter life. ABSOLEX HEPA filters are designed for final-stage clean air systems, capturing fine particles and supporting consistent operation even when airflow and humidity conditions vary.

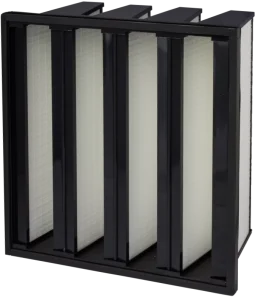

V Compact Plastic HEPA Filter
| Filter Code | EN 1822 | ISO 29463 | Width | Height | Depth | Filtration Area | Pleat Height | Pressure Loss 0,45 m/s |
||
|---|---|---|---|---|---|---|---|---|---|---|
| HCVC-P-F-E11-287x592x292-GED-FNA | E11 | ISO 15E | 287 mm | 592 mm | 292 mm | 9,0 m² | 25 mm | 1.700 m³/h | @ | 190 Pa |
| HCVC-P-F-E11-490x592x292-GED-FNA | E11 | ISO 15E | 490 mm | 592 mm | 292 mm | 15,5 m² | 25 mm | 2.800 m³/h | @ | 190 Pa |
| HCVC-P-F-E11-592x592x292-GED-FNA | E11 | ISO 15E | 592 mm | 592 mm | 292 mm | 19,0 m² | 25 mm | 3.400 m³/h | @ | 190 Pa |
| HCVC-P-F-E12-287x592x292-GED-FNA | E12 | ISO 25E | 287 mm | 592 mm | 292 mm | 9,0 m² | 25 mm | 1.250 m³/h | @ | 250 Pa |
| HCVC-P-F-E12-490x592x292-GED-FNA | E12 | ISO 25E | 490 mm | 592 mm | 292 mm | 15,5 m² | 25 mm | 2.000 m³/h | @ | 250 Pa |
| HCVC-P-F-E12-592x592x292-GED-FNA | E12 | ISO 25E | 592 mm | 592 mm | 292 mm | 19,0 m² | 25 mm | 2.500 m³/h | @ | 250 Pa |
| HCVC-P-F-H13-287x592x292-GED-FNA | H13 | ISO 35H | 287 mm | 592 mm | 292 mm | 9,0 m² | 25 mm | 1.250 m³/h | @ | 270 Pa |
| HCVC-P-F-H13-490x592x292-GED-FNA | H13 | ISO 35H | 490 mm | 592 mm | 292 mm | 15,5 m² | 25 mm | 2.000 m³/h | @ | 270 Pa |
| HCVC-P-F-H13-287x592x292-GED-FNA | H13 | ISO 35H | 592 mm | 592 mm | 292 mm | 19,0 m² | 25 mm | 2.500 m³/h | @ | 270 Pa |
| HCVC-P-F-H14-287x592x292-GED-FNA | H14 | ISO 45H | 287 mm | 592 mm | 292 mm | 9,0 m² | 25 mm | 1.100 m³/h | @ | 300 Pa |
| HCVC-P-F-H14-490x592x292-GED-FNA | H14 | ISO 45H | 490 mm | 592 mm | 292 mm | 15,5 m² | 25 mm | 1.800 m³/h | @ | 300 Pa |
| HCVC-P-F-H14-592x592x292-GED-FNA | H14 | ISO 45H | 592 mm | 592 mm | 292 mm | 19,0 m² | 25 mm | 2.200 m³/h | @ | 300 Pa |
Key Features
- HEPA efficiency: H13 / H14 according to EN 1822
- Mini-pleat technology: optimized pleat geometry for high dust holding and compact design
- Media: high-quality glass fiber
- Frame: durable plastic (corrosion-resistant, lightweight)
- Sealing options: Polyurethane or EPDM gasket (additional gasket styles available by code)
- Separator / pleat bonding: Hot-melt technology
- Fire class: Flame retardant F1 (ISO 53438) and self-extinguished
- ATEX option: EX versions available with conductive body + conductive media configuration
Technical Specifications
- Efficiency classes: H13, H14 (EN 1822)
- Max relative humidity: 95% RH
- Temperature limits: 75°C working, 80°C max
- Gasket: Polyurethane / EPDM (plus code-based gasket configurations)
Applications
V-Compact Plastic HEPA Filters are ideal for:
- Air Handling Units (AHU) in pharma, food & beverage, and electronics production areas
- Final-stage HEPA filtration in critical HVAC systems and controlled environments
- Systems where high airflow and compact installation depth are required
Selection Information
To select the correct V-Compact Plastic HEPA Filter, please share:
- Required airflow (m³/h)
- Installation dimensions (W×H×D)
- Efficiency class (H13 or H14)
- Operating temperature / humidity
- Preferred gasket and face guard options
