APC AirProControl’s High Capacity MDF HEPA Filters are engineered deep-pleat, high-efficiency final filters designed for HVAC systems and controlled environments requiring reliable clean air. Built with a robust MDF (Moisture-Resistant Medium Density Fiberboard) frame, these filters combine high dust holding capacity with optimized pressure drop for energy-efficient performance.
| Filter Code | EN 1822 | ISO 29463 | Width | Height | Depth | Filtration Area | Pleat Height | Pressure Loss 0,45 m/s |
||
|---|---|---|---|---|---|---|---|---|---|---|
| HCC-M-F-H13-305x305x292-GED-FGD-PH125 | H13 | ISO 35 H | 305 mm | 610 mm | 292 mm | 10,3 m² | 125 mm | 500 m³/h | @ | 240 Pa |
| HCC-M-F-H13-305x610x292-GED-FGD-PH125 | H13 | ISO 35 H | 457 mm | 457 mm | 292 mm | 11,6 m² | 125 mm | 1.000 m³/h | @ | 240 Pa |
| HCC-M-F-H13-457x610x292-GED-FGD-PH125 | H13 | ISO 35 H | 457 mm | 610 mm | 292 mm | 15,5 m² | 125 mm | 1.500 m³/h | @ | 240 Pa |
| HCC-M-F-H13-610x610x292-GED-FGD-PH125 | H13 | ISO 35 H | 610 mm | 610 mm | 292 mm | 20,7 m² | 125 mm | 2.000 m³/h | @ | 240 Pa |
| HCC-M-F-H13-610x762x292-GED-FGD-PH125 | H13 | ISO 35 H | 610 mm | 762 mm | 292 mm | 25,8 m² | 125 mm | 2.500 m³/h | @ | 240 Pa |
| HCC-M-F-H13-610x915x292-GED-FGD-PH125 | H13 | ISO 35 H | 610 mm | 915 mm | 292 mm | 31,0 m² | 125 mm | 3.000 m³/h | @ | 240 Pa |
| HCC-M-F-H13-610x1220x292-GED-FGD-PH125 | H13 | ISO 35 H | 610 mm | 1220 mm | 292 mm | 41,3 m² | 125 mm | 4.000 m³/h | @ | 240 Pa |
| HCC-M-F-H14-305x305x292-GED-FGD-PH125 | H14 | ISO 45 H | 305 mm | 610 mm | 292 mm | 10,3 m² | 125 mm | 500 m³/h | @ | 250 Pa |
| HCC-M-F-H14-305x610x292-GED-FGD-PH125 | H14 | ISO 45 H | 457 mm | 457 mm | 292 mm | 11,6 m² | 125 mm | 1.000 m³/h | @ | 250 Pa |
| HCC-M-F-H14-457x610x292-GED-FGD-PH125 | H14 | ISO 45 H | 457 mm | 610 mm | 292 mm | 15,5 m² | 125 mm | 1.500 m³/h | @ | 250 Pa |
| HCC-M-F-H14-610x610x292-GED-FGD-PH125 | H14 | ISO 45 H | 610 mm | 610 mm | 292 mm | 20,7 m² | 125 mm | 2.000 m³/h | @ | 250 Pa |
| HCC-M-F-H14-610x762x292-GED-FGD-PH125 | H14 | ISO 45 H | 610 mm | 762 mm | 292 mm | 25,8 m² | 125 mm | 2.500 m³/h | @ | 250 Pa |
| HCC-M-F-H14-610x915x292-GED-FGD-PH125 | H14 | ISO 45 H | 610 mm | 915 mm | 292 mm | 31,0 m² | 125 mm | 3.000 m³/h | @ | 250 Pa |
| HCC-M-F-H14-610x1220x292-GED-FGD-PH125 | H14 | ISO 45 H | 610 mm | 1220 mm | 292 mm | 41,3 m² | 125 mm | 4.000 m³/h | @ | 250 Pa |
| HCC-M-F-H13-305x305x292-GED-FNA-PH150 | H13 | ISO 35 H | 305 mm | 610 mm | 292 mm | 18,6 m² | 150 mm | 750 m³/h | @ | 250 Pa |
| HCC-M-F-H13-305x610x292-GED-FNA-PH150 | H13 | ISO 35 H | 457 mm | 457 mm | 292 mm | 20,9 m² | 150 mm | 1.500 m³/h | @ | 250 Pa |
| HCC-M-F-H13-457x610x292-GED-FNA-PH150 | H13 | ISO 35 H | 457 mm | 610 mm | 292 mm | 27,9 m² | 150 mm | 2.250 m³/h | @ | 250 Pa |
| HCC-M-F-H13-610x610x292-GED-FNA-PH150 | H13 | ISO 35 H | 610 mm | 610 mm | 292 mm | 37,2 m² | 150 mm | 3.000 m³/h | @ | 250 Pa |
| HCC-M-F-H13-610x762x292-GED-FNA-PH150 | H13 | ISO 35 H | 610 mm | 762 mm | 292 mm | 46,5 m² | 150 mm | 3.750 m³/h | @ | 250 Pa |
| HCC-M-F-H13-610x915x292-GED-FNA-PH150 | H13 | ISO 35 H | 610 mm | 915 mm | 292 mm | 55,8 m² | 150 mm | 4.500 m³/h | @ | 250 Pa |
| HCC-M-F-H13-610x1220x292-GED-FNA-PH150 | H13 | ISO 35 H | 610 mm | 1220 mm | 292 mm | 74,4 m² | 150 mm | 6.000 m³/h | @ | 250 Pa |
| HCC-M-F-H14-305x305x292-GED-FNA-PH150 | H14 | ISO 45 H | 305 mm | 610 mm | 292 mm | 18,6 m² | 150 mm | 750 m³/h | @ | 270 Pa |
| HCC-M-F-H14-305x610x292-GED-FNA-PH150 | H14 | ISO 45 H | 457 mm | 457 mm | 292 mm | 20,9 m² | 150 mm | 1.500 m³/h | @ | 270 Pa |
| HCC-M-F-H14-457x610x292-GED-FNA-PH150 | H14 | ISO 45 H | 457 mm | 610 mm | 292 mm | 27,9 m² | 150 mm | 2.250 m³/h | @ | 270 Pa |
| HCC-M-F-H14-610x610x292-GED-FNA-PH150 | H14 | ISO 45 H | 610 mm | 610 mm | 292 mm | 37,2 m² | 150 mm | 3.000 m³/h | @ | 270 Pa |
| HCC-M-F-H14-610x762x292-GED-FNA-PH150 | H14 | ISO 45 H | 610 mm | 762 mm | 292 mm | 46,5 m² | 150 mm | 3.750 m³/h | @ | 270 Pa |
| HCC-M-F-H14-610x915x292-GED-FNA-PH150 | H14 | ISO 45 H | 610 mm | 915 mm | 292 mm | 55,8 m² | 150 mm | 4.500 m³/h | @ | 270 Pa |
| HCC-M-F-H14-610x1220x292-GED-FNA-PH150 | H14 | ISO 45 H | 610 mm | 1220 mm | 292 mm | 74,4 m² | 150 mm | 6.000 m³/h | @ | 270 Pa |
Key Features & Benefits
- High efficiency classes: E10–E12, H13–H14 (tested according to EN 1822 / ISO 29463)
- Deep-pleat compact design for increased media surface area
- High dust holding capacity for extended service life
- Low pressure drop (∆P) to reduce fan energy consumption
- Moisture-resistant MDF frame with reinforced construction
- Reliable sealing with polyurethane or EPDM gasket options
- Suitable for final filtration in HVAC and critical air systems
Product Description

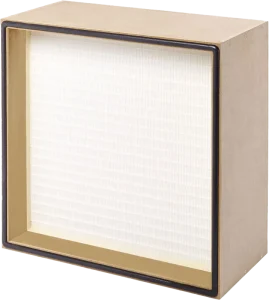

The High Capacity MDF HEPA Filter features a deep-pleated fiberglass media pack housed in a durable MDF frame. The deep-pleat structure maximizes filtration area, ensuring higher dust retention and stable airflow performance compared to conventional panel filters.
Designed as a final stage filter, it effectively captures fine airborne particles, including bacteria and sub-micron contaminants, making it ideal for clean and controlled environments.
HEPA filters rated H13 achieve ≥99.95% efficiency and H14 ≥99.995% efficiency at MPPS (Most Penetrating Particle Size), in accordance with EN 1822 standards.
