High-Capacity Deep-Pleat HEPA Filtration for HVAC & Critical Air Systems
ABSOLEX V-Bank HEPA Filters are high-capacity, deep-pleat HEPA elements designed for demanding HVAC systems, cleanrooms, and critical production environments. With an optimized V-shaped pleat geometry and premium fiberglass media, these filters deliver H13 / H14 HEPA efficiency with robust performance, high airflow handling and long service life.

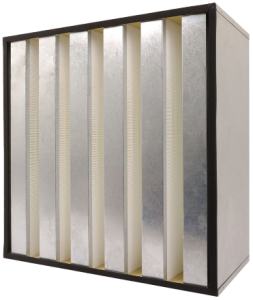

V BANK HEPA Filter
| Filter Code | EN 1822 | ISO 29463 | Width | Height | Depth | Filtration Area | Pleat Height | Pressure Loss | ||
|---|---|---|---|---|---|---|---|---|---|---|
| HCVB-G-F-H13-3-287x592x292-GEC | H13 | ISO 35 H | 287 mm | 592 mm | 292 mm | 12,8 m² | 25 mm | 1.000 m³/h | @ | 240 Pa |
| HCVB-G-F-H13-3-305x610x292-GEC | H13 | ISO 35 H | 305 mm | 610 mm | 292 mm | 13,6 m² | 25 mm | 1.500 m³/h | @ | 240 Pa |
| HCVB-G-F-H13-3-457x610x292-GEC | H13 | ISO 35 H | 457 mm | 610 mm | 292 mm | 20,4 m² | 25 mm | 2.000 m³/h | @ | 240 Pa |
| HCVB-G-F-H13-3-592x592x292-GEC | H13 | ISO 35 H | 592 mm | 592 mm | 292 mm | 26,4 m² | 25 mm | 2.500 m³/h | @ | 240 Pa |
| HCVB-G-F-H13-3-610x610x292-GEC | H13 | ISO 35 H | 610 mm | 610 mm | 292 mm | 27,2 m² | 25 mm | 3.000 m³/h | @ | 240 Pa |
| HCVB-G-F-H13-3-610x762x292-GEC | H13 | ISO 35 H | 610 mm | 762 mm | 292 mm | 27,2 m² | 25 mm | 4.000 m³/h | @ | 240 Pa |
| HCVB-G-F-H14-3-287x592x292-GEC | H14 | ISO 45 H | 287 mm | 592 mm | 292 mm | 12,8 m² | 25 mm | 1.000 m³/h | @ | 250 Pa |
| HCVB-G-F-H14-3-305x610x292-GEC | H14 | ISO 45 H | 305 mm | 610 mm | 292 mm | 13,6 m² | 25 mm | 1.500 m³/h | @ | 250 Pa |
| HCVB-G-F-H14-3-457x610x292-GEC | H14 | ISO 45 H | 457 mm | 610 mm | 292 mm | 20,4 m² | 25 mm | 2.000 m³/h | @ | 250 Pa |
| HCVB-G-F-H14-3-592x592x292-GEC | H14 | ISO 45 H | 592 mm | 592 mm | 292 mm | 26,4 m² | 25 mm | 2.500 m³/h | @ | 250 Pa |
| HCVB-G-F-H14-3-610x610x292-GEC | H14 | ISO 45 H | 610 mm | 610 mm | 292 mm | 27,2 m² | 25 mm | 3.000 m³/h | @ | 250 Pa |
| HCVB-G-F-H14-3-610x762x292-GEC | H14 | ISO 45 H | 610 mm | 762 mm | 292 mm | 27,2 m² | 25 mm | 4.000 m³/h | @ | 250 Pa |
| HCVB-G-F-H13-4-287x592x292-GEC | H13 | ISO 35 H | 287 mm | 592 mm | 292 mm | 18,6 m² | 25 mm | 2.000 m³/h | @ | 290 Pa |
| HCVB-G-F-H13-4-305x610x292-GEC | H13 | ISO 35 H | 305 mm | 610 mm | 292 mm | 19,8 m² | 25 mm | 2.000 m³/h | @ | 290 Pa |
| HCVB-G-F-H13-4-457x610x292-GEC | H13 | ISO 35 H | 457 mm | 610 mm | 292 mm | 29,7 m² | 25 mm | 3.000 m³/h | @ | 290 Pa |
| HCVB-G-F-H13-4-592x592x292-GEC | H13 | ISO 35 H | 592 mm | 592 mm | 292 mm | 38,4 m² | 25 mm | 4.000 m³/h | @ | 290 Pa |
| HCVB-G-F-H13-4-610x610x292-GEC | H13 | ISO 35 H | 610 mm | 610 mm | 292 mm | 39,6 m² | 25 mm | 4.000 m³/h | @ | 290 Pa |
| HCVB-G-F-H13-4-610x762x292-GEC | H13 | ISO 35 H | 610 mm | 762 mm | 292 mm | 39,6 m² | 25 mm | 5.000 m³/h | @ | 290 Pa |
| HCVB-G-F-H14-4-287x592x292-GEC | H14 | ISO 45 H | 287 mm | 592 mm | 292 mm | 18,6 m² | 25 mm | 2.000 m³/h | @ | 300 Pa |
| HCVB-G-F-H14-4-305x610x292-GEC | H14 | ISO 45 H | 305 mm | 610 mm | 292 mm | 19,8 m² | 25 mm | 2.000 m³/h | @ | 300 Pa |
| HCVB-G-F-H14-4-457x610x292-GEC | H14 | ISO 45 H | 457 mm | 610 mm | 292 mm | 29,7 m² | 25 mm | 3.000 m³/h | @ | 300 Pa |
| HCVB-G-F-H14-4-592x592x292-GEC | H14 | ISO 45 H | 592 mm | 592 mm | 292 mm | 38,4 m² | 25 mm | 4.000 m³/h | @ | 300 Pa |
| HCVB-G-F-H14-4-610x610x292-GEC | H14 | ISO 45 H | 610 mm | 610 mm | 292 mm | 39,6 m² | 25 mm | 4.000 m³/h | @ | 300 Pa |
| HCVB-G-F-H14-4-610x762x292-GEC | H14 | ISO 45 H | 610 mm | 762 mm | 292 mm | 39,6 m² | 25 mm | 5.000 m³/h | @ | 300 Pa |
Why Choose V-Bank HEPA Filters?
- Superior Filtration Efficiency – Certified to H13 and H14 classes under EN 1822 / ISO 29463 standards, delivering reliable removal of airborne particles down to 0.3 µm.
- Enhanced Media Area – V-bank design significantly increases filtration surface while keeping depth compact, maximizing airflow with lower pressure drop and extended service life.
- Strong Construction – Available with galvanized steel, aluminum, or stainless steel frames to suit different environmental and mechanical requirements.
- Sealing Options – Multiple gasket types including polyurethane and EPDM ensure tight sealing and minimize bypass leakage.
- Hot Melt Pleat Bonding – Ensures pleat stability and consistent performance throughout the filter’s life.
Features & Benefits
- High Efficiency: H13 / H14 HEPA performance according to EN 1822.
- Optimized V-Bank Design: Increases media area for better airflow capacity and dust holding.
- Robust Frame Materials: Galvanized, aluminum, or stainless steel frames available for corrosion resistance and installation flexibility.
- Wide Application Range: Suitable for HVAC systems, cleanrooms, hospitals, pharmaceutical facilities, electronics manufacturing and food & beverage industries.
- Temperature and Humidity Durability: Designed to operate at elevated humidity and temperature conditions typical of industrial air systems.
Technical Highlights
- Media: High-performance fiberglass media.
- Pleat Geometry: V-shaped mini-pleat for maximum surface area.
- Frame Depth: Typically 292 mm for deep-pleat configurations.
- Operating Conditions: Up to ~95 % relative humidity; temperature ranges per frame material and sealants.
Applications
ABSOLEX V-Bank HEPA Filters are ideal for environments that demand strict air quality and particulate control, including:
- HVAC final filtration in commercial buildings and industrial facilities.
- Cleanrooms and controlled environments for pharmaceuticals, biotechnology, and microelectronics.
- Hospitals, laboratories, and healthcare facilities requiring high-efficiency particulate removal.
- Food & beverage production areas where airborne particulates must be tightly managed.
