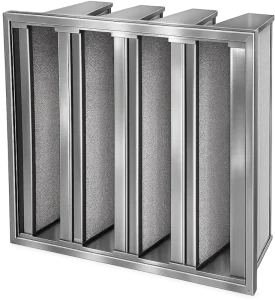

ABSOLEX High Capacity Deep-Pleat V Compact HEPA Filters are engineered for critical air filtration in HVAC systems, cleanrooms, and gas turbine air intake applications. The V-cell configuration combines mini-pleat technology with high-quality fiberglass media to deliver reliable filtration efficiency, high dust holding capacity, and optimized airflow in a compact footprint
| Filter Code | EN 1822 | ISO 29463 | Width | Height | Depth | Filtration Area | Pleat Height | Pressure Loss | ||
|---|---|---|---|---|---|---|---|---|---|---|
| HCVC-G-F-E11-287x592x292-GED-FNA | E11 | ISO 15E | 287 mm | 592 mm | 292 mm | 9,0 m² | 25 mm | 1.350 m³/h | @ | 265 Pa |
| HCVC-G-F-E11-490x592x292-GED-FNA | E11 | ISO 15E | 490 mm | 592 mm | 292 mm | 15,5 m² | 25 mm | 2.450 m³/h | @ | 265 Pa |
| HCVC-G-F-E11-592x592x292-GED-FNA | E11 | ISO 15E | 592 mm | 592 mm | 292 mm | 19,0 m² | 25 mm | 3.000 m³/h | @ | 265 Pa |
| HCVC-G-F-E12-287x592x292-GED-FNA | E12 | ISO 25E | 287 mm | 592 mm | 292 mm | 9,0 m² | 25 mm | 1.350 m³/h | @ | 265 Pa |
| HCVC-G-F-E12-490x592x292-GED-FNA | E12 | ISO 25E | 490 mm | 592 mm | 292 mm | 15,5 m² | 25 mm | 2.450 m³/h | @ | 265 Pa |
| HCVC-G-F-E12-592x592x292-GED-FNA | E12 | ISO 25E | 592 mm | 592 mm | 292 mm | 19,0 m² | 25 mm | 3.000 m³/h | @ | 265 Pa |
| HCVC-G-F-H13-287x592x292-GED-FNA | H13 | ISO 35H | 287 mm | 592 mm | 292 mm | 9,0 m² | 25 mm | 1.350 m³/h | @ | 320 Pa |
| HCVC-G-F-H13-490x592x292-GED-FNA | H13 | ISO 35H | 490 mm | 592 mm | 292 mm | 15,5 m² | 25 mm | 2.450 m³/h | @ | 320 Pa |
| HCVC-G-F-H13-287x592x292-GED-FNA | H13 | ISO 35H | 592 mm | 592 mm | 292 mm | 19,0 m² | 25 mm | 3.000 m³/h | @ | 320 Pa |
| HCVC-G-F-H14-287x592x292-GED-FNA | H14 | ISO 45H | 287 mm | 592 mm | 292 mm | 9,0 m² | 25 mm | 1.350 m³/h | @ | 320 Pa |
| HCVC-G-F-H14-490x592x292-GED-FNA | H14 | ISO 45H | 490 mm | 592 mm | 292 mm | 15,5 m² | 25 mm | 2.450 m³/h | @ | 320 Pa |
| HCVC-G-F-H14-592x592x292-GED-FNA | H14 | ISO 45H | 592 mm | 592 mm | 292 mm | 19,0 m² | 25 mm | 3.000 m³/h | @ | 320 Pa |
Why V-Compact (V-Cell) Design?
The V-compact geometry increases effective media area inside the same installation space. This helps achieve:
- Higher airflow capacity in a compact size
- Lower resistance / lower average pressure drop
- High dust holding capacity and longer service intervals
- Stable performance in demanding ventilation systems
Key Features
- Efficiency classes: E10, E11, E12, H13, H14 (EN 1822 / ISO 29463)
- Mini-pleat V-cell construction: High surface area for improved capacity and airflow optimization
- Separator technology: Hot-melt spacing for consistent pleat geometry and durability
- Frame options: Galvanized steel, plastic, or stainless steel
- Gasket options: Polyurethane (PU) or EPDM for enhanced sealing
- Operating conditions: Up to 120°C and 95% RH (application dependent)
- Typical depth: 292 mm (V-pleat design maximizes media utilization)
HEPA Testing and Standards (EN 1822 / ISO 29463)
HEPA and EPA filter classifications in EN 1822 / ISO 29463 are evaluated at the MPPS (Most Penetrating Particle Size)—the particle size that is most difficult to capture—so the rating reflects true worst-case performance.
Typical Applications
ABSOLEX V Compact HEPA Filters are recommended for:
- Final-stage filtration in HVAC systems
- Cleanrooms & controlled environments
- Pharmaceutical and critical production areas
- Gas turbine air intake systems
