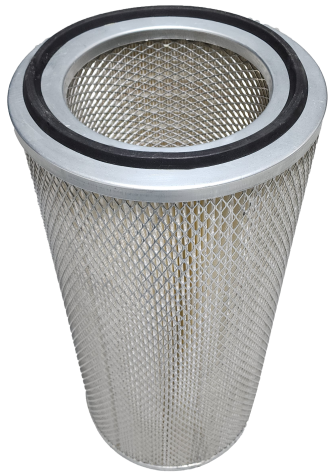

CARTEX Cartridge Filters – High-Efficiency Filtration for Industrial Dust, Fumes & Hazardous Atmospheres
At APC AirProControl, we engineer CARTEX Cartridge Filters to deliver superior air filtration performance in the most demanding industrial environments. Designed for ATEX-classified explosive zones, oil-mist and moisture-rich systems, and high-dust production lines, CARTEX filters provide unmatched reliability, long service life, and exceptional filtration efficiency.
Developed with advanced technology and industry-leading materials, CARTEX filters help facilities achieve lower energy consumption, improved air quality, and reduced maintenance downtime.
Advanced Filter Media for Critical Industrial Applications
CARTEX Filters are manufactured using high-performance filter media options, each tailored to different industrial requirements:
Fiberglass
Cellulose–Synthetic Blend
BICO Polyester
PTFE (Polytetrafluoroethylene)
These materials ensure optimal particle retention and stable airflow, even in heavy industrial dust-loading conditions.
NANO Coating Technology – Superior Fine Particle Capture
Our proprietary NANO coating technology delivers significant performance advantages:
Enhanced fine particle capture (including submicron dust)
Reduced pressure drop for lower energy costs
Improved dust-cake release during pulse cleaning
Extended filter life with more consistent efficiency
This makes CARTEX ideal for fiber dust, combustible dust, and high-efficiency filtration applications.
Optimized Pleating & Corrugation – Maximum Surface Area, Minimum Pressure Loss
CARTEX filters are engineered with precision-designed pleating and deep corrugation patterns that:
Maximize effective filter surface area
Improve dust-holding capacity
Increase airflow uniformity
Enhance cleaning efficiency in jet-pulse dust collectors
This structural optimization ensures stable performance in high-volume industrial air systems.
ATEX-Ready & Safety-Critical Performance
For facilities operating in hazardous or explosive atmospheres, CARTEX offers specialized safety-focused options:
Conductive aluminum-coated media
Carbon-impregnated antistatic media
DIN 53438 F1 flame-retardant compliant configurations
These options deliver safe, compliant, and reliable operation in ATEX Zone 20/21/22 dust environments.
Oil-Mist & Moisture-Handling Capability
CARTEX filters are enhanced with hygroscopic surface treatments, making them highly effective in:
Metalworking oil-mist extraction
High humidity process air systems
Condensation-prone ventilation ducts
Food, chemical, and pharmaceutical environments
This ensures clean, stable airflow and reduces operational interruptions.
Why Choose CARTEX Cartridge Filters?
Exceptional efficiency for fine and submicron dust
Lower operating costs due to reduced ΔP
Proven ATEX compliance for hazardous dust
Longer service life and lower maintenance
Multiple media options for diverse industrial needs
Optimized for jet-pulse filter cleaning systems
Reliable performance in harsh environmental conditions
