Reliable Synthetic Roll Filter Media for HVAC and Ventilation Systems

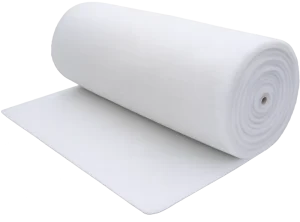

COARTEX MR Mat Roll Filter is a high-performance synthetic filter media developed for coarse and medium pre-filtration in HVAC and industrial ventilation systems. It is suitable for applications where dependable particle capture, low resistance, and long service life are required. Designed for flexible use, the media can be cut on site and installed in different filter frames and equipment configurations.
The MR Mat Roll Filter is available in G3, G4, and M5 filtration classes, making it a practical choice for protecting downstream fine filters and improving the overall efficiency of air handling systems. With its progressive synthetic fiber structure, the filter provides strong dust holding capacity while maintaining stable airflow performance.
High Dust Holding Capacity with Low Resistance
The progressive fiber structure of the Synthetic Mat Roll Filter helps capture airborne particles efficiently while maintaining stable air passage. This design supports longer service intervals and helps reduce the load on downstream fine filters. With filtration options in G3, G4, and M5 classes, the filter can be selected according to the required level of pre-filtration or general ventilation performance.
Key Features
- Available in G3, G4, and M5 filtration classes
- Made from synthetic non-woven filter media
- High dust holding capacity
- Low pressure drop for energy-efficient operation
- Easy to cut and adapt to different frame sizes
- Suitable for high humidity conditions up to 95% RH
- Fire resistant according to DIN 53438 F1/K1
- Suitable for commercial and industrial ventilation systems
COARTEX Coarse MR Mat Roll Filter
| Filter Code | EN 779 | ISO 16890 | Width | Length | Thickness | Weight | Pressure Loss | |||
|---|---|---|---|---|---|---|---|---|---|---|
| MR-SF-G3-100/10-1x20 | G3 | Coarse | 30% | 1000 mm | 20000 mm | 10 mm | 100 g/m² | 1,50 m/s | @ | 30 Pa |
| MR-SF-G3-100/10-2x20 | G3 | Coarse | 30% | 2000 mm | 20000 mm | 10 mm | 100 g/m² | 1,50 m/s | @ | 30 Pa |
| MR-SF-G3-150/15-1x20 | G3 | Coarse | 45% | 1000 mm | 20000 mm | 15 mm | 150 g/m² | 1,50 m/s | @ | 30 Pa |
| MR-SF-G3-150/15-2x20 | G3 | Coarse | 45% | 2000 mm | 20000 mm | 15 mm | 150 g/m² | 1,50 m/s | @ | 30 Pa |
| MR-SF-G4-200/20-1x20 | G4 | Coarse | 55% | 1000 mm | 20000 mm | 20 mm | 200 g/m² | 1,50 m/s | @ | 30 Pa |
| MR-SF-G4-200/20-2x20 | G4 | Coarse | 55% | 2000 mm | 20000 mm | 20 mm | 200 g/m² | 1,50 m/s | @ | 30 Pa |
| MR-SF-G4-250/25-1x20 | G4 | Coarse | 60% | 1000 mm | 20000 mm | 25 mm | 250 g/m² | 1,50 m/s | @ | 35 Pa |
| MR-SF-G4-250/25-2x20 | G4 | Coarse | 60% | 2000 mm | 20000 mm | 25 mm | 250 g/m² | 1,50 m/s | @ | 35 Pa |
| MR-SF-M5-300/30-1x20 | M5 | FINE | 80% | 1000 mm | 20000 mm | 30 mm | 300 g/m² | 1,50 m/s | @ | 40 Pa |
| MR-SF-M5-300/30-2x20 | M5 | FINE | 80% | 2000 mm | 20000 mm | 30 mm | 300 g/m² | 1,50 m/s | @ | 40 Pa |
Typical Applications
COARTEX Synthetic Mat Roll Filter is suitable for a wide range of ventilation and filtration systems, including:
- Air handling units
- Fan coil units
- Split air conditioning systems
- Paint spray booths
- Cassette filter systems
- Z-line filter applications
- Rotary drum filter systems
- Pre-filtration stages before fine and HEPA filters
Available Options
The filter media is available in standard roll dimensions to suit various air filtration requirements. Current standard options include widths of 1000 mm and 2000 mm, a roll length of 20,000 mm, and thicknesses from 10 mm to 30 mm. Different media weights and filter grades are available to meet different dust loading and efficiency needs.
Why Choose COARTEX Synthetic Mat Roll Filter?
COARTEX Synthetic Mat Roll Filter provides an economical and dependable solution for general ventilation and pre-filtration duties. It helps improve indoor air quality, supports efficient HVAC system operation, and extends the service life of downstream filters. Thanks to its flexible roll format, it is easy to install, easy to handle, and suitable for both standard and custom-sized applications.
Contact APC AirProControl
For more information about COARTEX Synthetic Mat Roll Filter, custom dimensions, or bulk supply options, contact APC AirProControl. Our team can help you choose the right filter media for your HVAC or industrial air filtration system.
